Prerequisites

Before you begin to install, configure, and use the Macraigor Usb2Demon Debugger, you'll need to verify that you have the following required hardware and software:

• Hardware requirements:

  • Macraigor Usb2Demon Debugger
  • USB cable

    For the list of supported target boards for Macraigor, see the Macraigor website at www.macraigor.com/cpus.htm.

• Software requirements — although the Macraigor debugger has very light hardware requirements, it does depend on a large amount of software. On the host machine, ensure you've installed:

  • Cygwin environment (containing libexpat and make)
  • Sun Java Runtime
  • Macraigor hw_support package containing the OCDremote utility: hw_support_2.25.exe
  • QNX Momentics IDE version 4.5 or higher

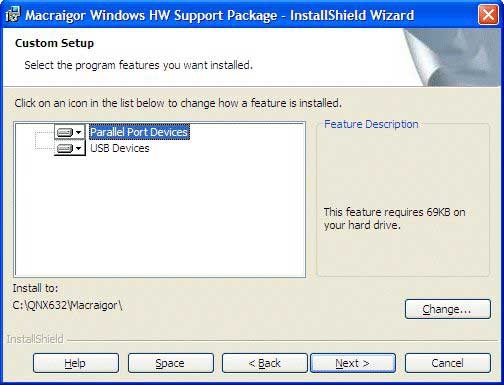

Installing the Macraigor hardware support package

To install the hardware support package:

1. Download the Macraigor hw_support package containing the OCDremote utility and run the file hw_support_2.25.exe.



2. Click Install, and when it's completed, you'll click Finish. You'll be prompted to restart your system for the changes to take effect.

For detailed information about using the Macraigor JTAG/BDM devices and GNU Tools, see www.abatron.ch/fileadmin/user_upload/products/pdf/ManGdbCOP-2000C.pdf.
